Manta family
Manta is a 40% keyboard family. The repository maintains both legacy AVR PCBs and Manta40 rev2 boards based on Trichord, so firmware must be selected for the exact PCB and layout.

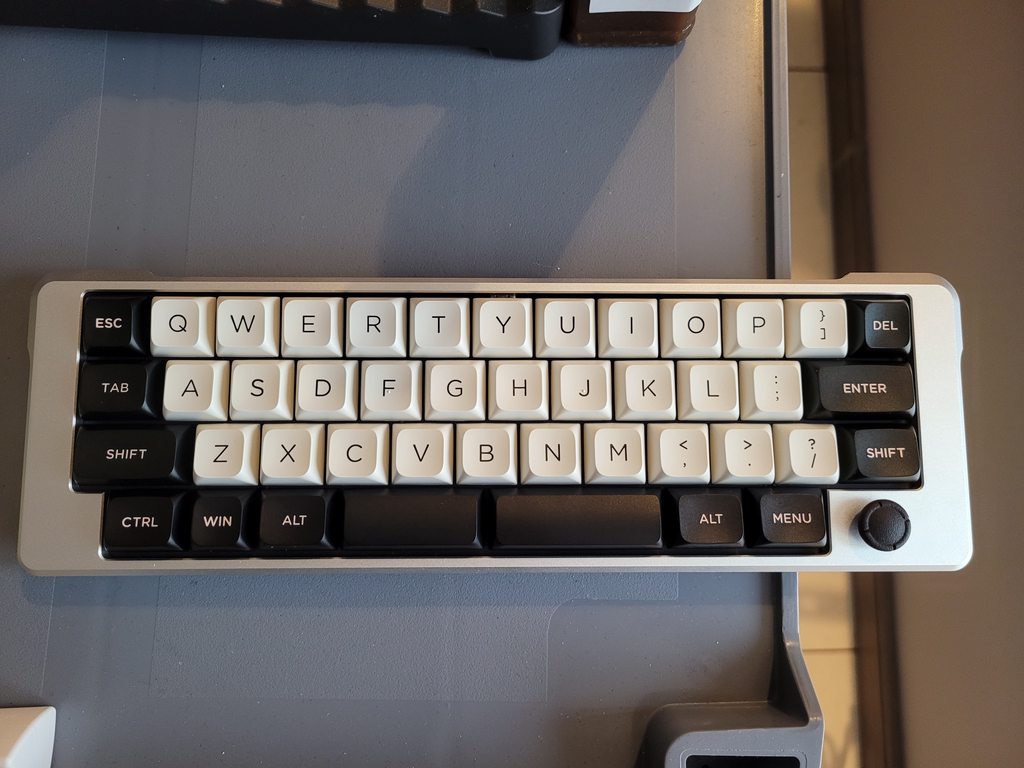

The image shows Manta 40s as a representative of the Manta family.
Family members
- Manta 40s Hotswap: 40% hotswap AVR PCB
- Manta 40s Solderable: 40% solderable AVR PCB
- Manta Ortho: ortholinear AVR PCB
- Manta40 rev2: STM32L412 + CH592 Trichord PCB
- Manta40 rev2 Ortho: ortholinear Trichord PCB
Manta40 rev2 and Manta40 rev2 Ortho are separate firmware targets and are not interchangeable.
